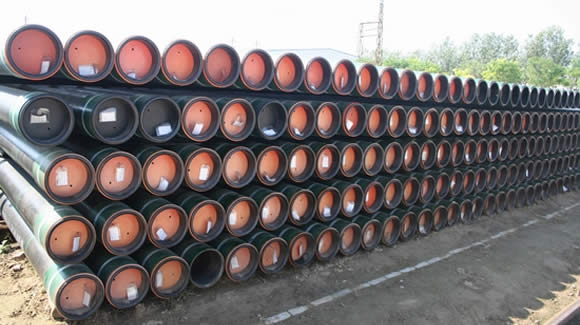

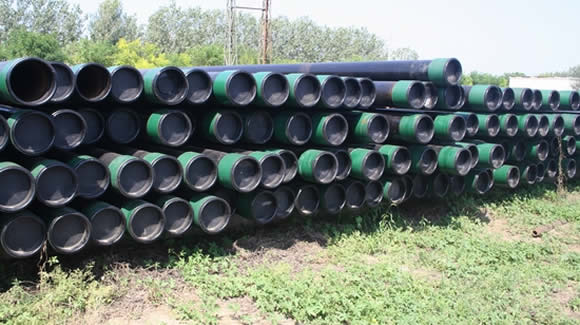

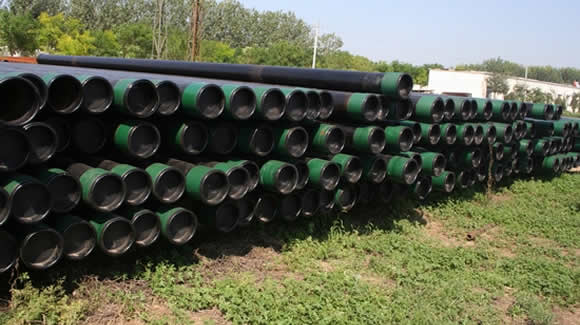

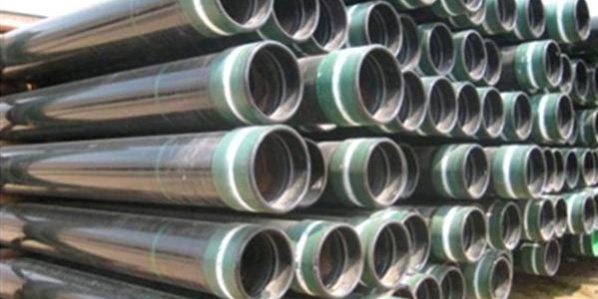

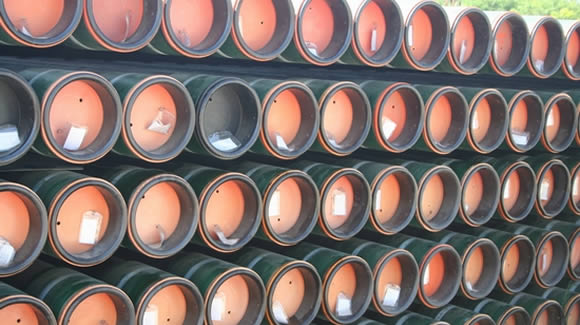

oilfield casing and tubing are in accordance with API Spec 5CT. Casing is used for oil and gas well drilling, and tubing is used for extracting oil and gas from reservoirs. Our oil casing includes seamless casing and ERW casing.
Casing, is the structural retainer for the walls of oil and gas wells, Casing sizes from 4.5 to 20 inches O.D. inclusive, wall thickness from 5.21 mm to 15.88 mm.
Tubing, is used within the casing to convey the oil or gas to the ground surface, Tubing sizes from 1.050 to 4.5 inches O.D. inclusive, wall thickness from 3.18 mm to 10.54 mm.Drill Pipe, is the seamless steel pipe used to drill the well by transmitting power to a rotary drilling tool from the surface to below ground level,the dirll pipes cover sizes form 2 3/8 to 6 5/8 inches O.D. inclusive, wall thickness from 6.88 mm to 12.7 mm.
Dimension range(OD inch)：4 1/2”—30”
Dimension range(OD mm)：114.3—762
Standard: API SPEC 5CT
Main Steel Grade: H40, J55, K55, N80, N80Q, L80, T95, P110 etc
|Standard||Grade||Tensile Strength（MPa）||Yield Strength（MPa）||Elongation（%）||Hardness|
|API SPEC 5CT||J55||≥517||379～552||0.5%||≤241HB|
This International Standard is applicable to the following connections in accordance with ISO 10422 or API Spec 5B:
short round thread casing (STC);
long round thread casing (LC);
buttress thread casing (BC);
extreme-line casing (XC);
non-upset tubing (NU);
external upset tubing (EU);
integral joint tubing (IJ).
For such connections, this International Standard specifies the technical delivery conditions for couplings and thread protection.
For pipes covered by this International Standard, the sizes, masses, wall thicknesses, grades and applicable end finishes are defined.
This International Standard may also be applied to tubulars with connections not covered by ISO/API standards.
Pipe For Oil Field and Supply supplies new and used steel casing pipe, piling pipe, surplus pipe, and used steel pipe.
