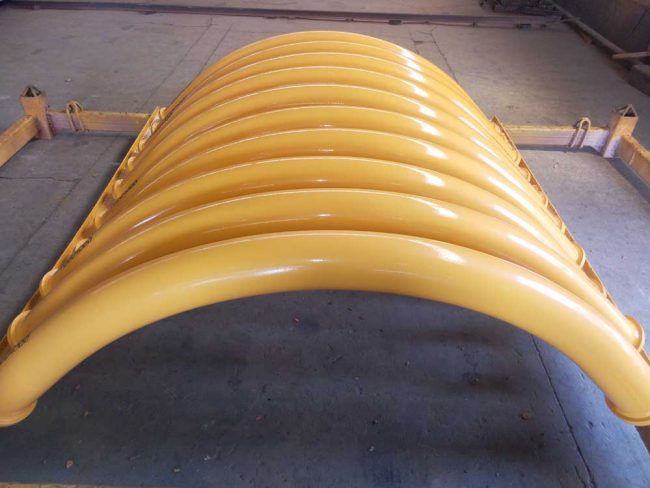

constriuction building construction equipments cast manganese trailer parts stationary concrete pump elbow/bend
Putzmeister,sany,schiwng,zoomlion ihi brand .
Material:Hi-Mn13
Size:DN 125mm or DN 150mm (R275,R225,R315,etc)
Degree:90, 60,45,30,15
Types:our concrete pump elbows mainly include single wall elbows, double layer(twin walls) elbows,wear-resisting elbows, advanced technology, work life long
|
NAME
|
NORMAL BEND
|
TWIN WALL BEND
|
|
MATERIAL
|
ST52
|
65Mn+ST52
|
|
SIZE
|
DN125*6°9°11°15°20°30°36°45°90°/LENGTHEN ELBOW/FLAT ELBOW
|
|
|
FLANGE TYPE
|
SK or Z/X or M/F
|
TWIN WALL FLANGE
|
|
THICKNESS
|
6-10MM
|
6-12MM
|
|
LIFETIME
|
20,000-40,000m³
|
50,000-80,000 m³
|
|
COLOR
|
RED,WHITE,YELLOW,GREEN AND CAN BE ALSO CUSTOMIZED
|
|
|
APPLICATION
|
PM, JUNJIN, SCHWING, CIFA, SANY, ZOOMLION, XCMG, KYOKUTO, IHI,HOLD ETC.
|
|
|
concrete pump elbow Single elbow
|
concrete pump elbow Double wall elbow
|
|||
|
DN125
|
DN150
|
DN125
|
||
|
Outside
|
||||
|
R275*90°
|
R275*90°+110
|
36°
|
R275*90°
|
R275*90°+110
|
|
R275*45°
|
R275*90°+211
|
R400*30°
|
R275*45°
|
R275*90°+211
|
|
R275*25°
|
R275*90°+411
|
R400*45°
|
R275*25°
|
R275*90°+411
|
|
R275*20°
|
R275*90°+424
|
R400*30°
|
R275*20°
|
R275*90°+424
|
|
R275*15°
|
R275*45°+170
|
R488*90
|
R275*15°
|
R275*45°+170
|
|
R180*90°
|
R275*45°+310
|
R500*90
|
R180*90°
|
R275*45°+310
|
|
R232*60°
|
R275*45°+310
|
R280*90°
|
R232*60°
|
R275*45°+310
|
|
R240*36°
|
20°Lengthen
|
R240*36°
|
20°Lengthen
|
|
|
R240*30°
|
25°+740
|
R240*30°
|
25°+740
|
|
|
R240*15°
|
40°Zoomlion
|
R240*15°
|
40°Zoomlion
|
|
|
R385*29°
|
R385*29°
|
|||
|
R315*33°
|
R315*33°
|
|||
