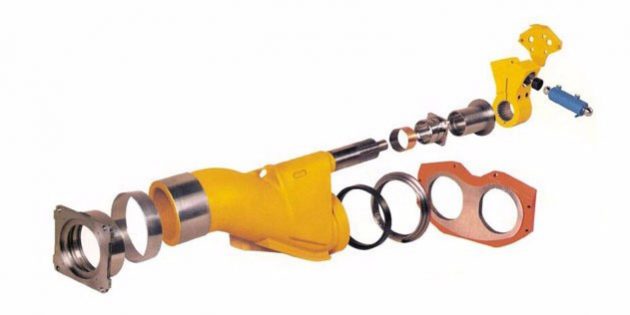

Product name: S tube assembly
S valve is a key part of the concrete pump, it is located in the hopper connected with the conveying cylinder and pipe, coordinate the movement of the various parts of the mechanism, thus directly affects the performance of the concrete pump, but also directly affects the overall design of the concrete pump.The pipe body of s-pipe valve has two forms of variable diameter and constant diameter.Its characteristics can be driven by the pressure of concrete cutting ring automatic sealing pipe mouth, sealing performance is good, so that the concrete pump has a strong transport capacity, and the flow channel unobstructed, not easy to block.
Scope of application: concrete pump truck, tow pump, truck pump
Material: alloy steel [including chrome-plated sleeve]
Specification and model: diameter 200/230/235/260
Features: wear resistance, pressure resistance and corrosion resistance is the current pump truck concrete delivery elbow in the first choice of products
Purpose: used for concrete conveying of pump truck, truck pump and tow pump
Operation instructions: provide suitable production according to user working conditions or required comprehensive performance requirements
The existing piston models are 140 (fine stone pump, foaming machine), 200 (sany, zoomlion, hongderi), 230 (sany, zoomlion). Other models will be produced in succession.
Excellent mechanical properties, good corrosion resistance.Can completely scrape the concrete conveying cylinder inner wall, extend the conveying cylinder life, long product life, reduce the trouble of replacement.Production of trinity pump truck parts | China united concrete pump truck
High Quality Concrete Pump S valve For Construction
double layer manufacturing process
Sany Zoomlion XCMG Schwing Putzmeister CIFA
With A Strong Wear-Resistance Sleeve (Hardness: HRC75)
