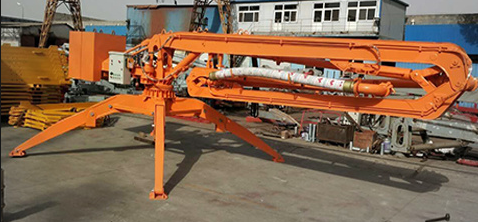

15m spider concrete placing boom, concrete distributor

The concrete placing boom is the assorted equipment of concrete pump. Its application extends the delivery range of concrete, efficiently solves the problem of wall painting and plays an important role in enhancing construction efficiency and reducing the labor intensity. This series of concrete placing boom have reasonable design and reliable structure. The placing structure…

Distribution electrical Placing Boom mechanical

Product specifications: electric facbric machine parameters specifications 12 meters electric (frame type) 15meters electric (frame type) radius of gyration(m) 13.5 16.5 the height of the placing boom(m) 11.8 14.8 diameter of conveying pipe(mm) 125 125 delivery pipe straight pipe wall thickness 4.5 4.5 bend pipe wall thickness 6 6 leg span(m) 3.2*3.2 4*4 rotation metiods…

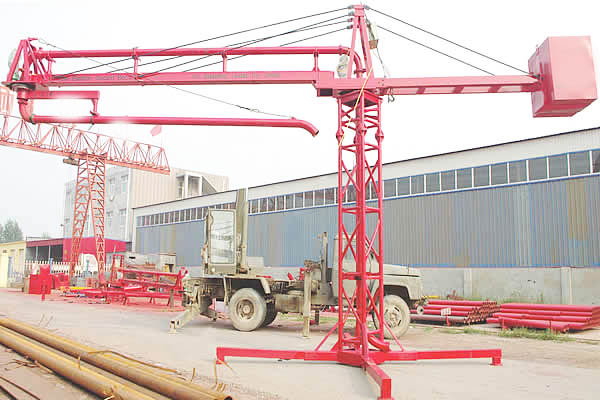

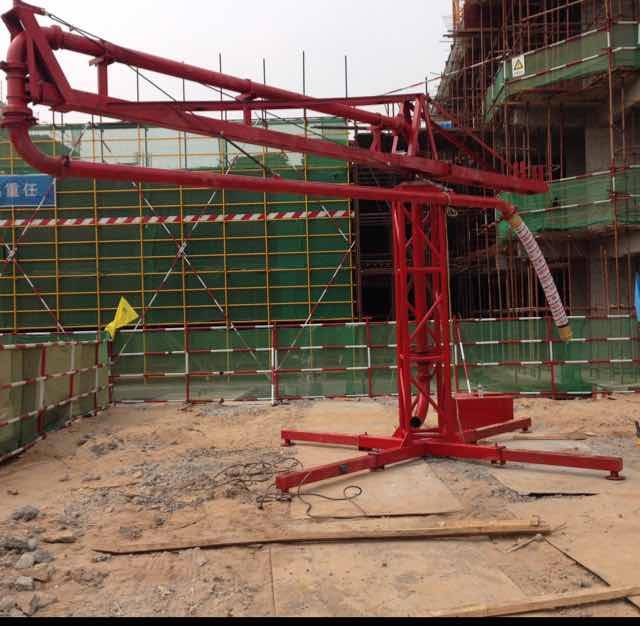

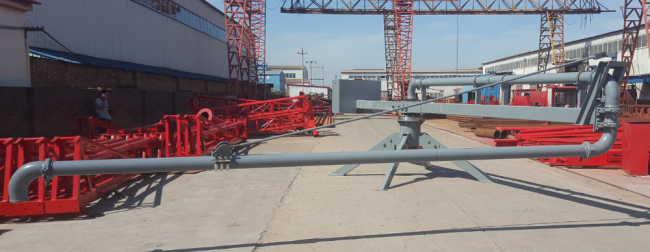

Concrete Placing Boom Spreader Machine,12m 15m 18m

General Description: 12m 15m 18m manual concrete placing boom is one kind of placing machine which cooperates the concrete pump on-site construction. It is composed of concrete delivery pipeline, grounding machine, undercarriage machine and slewing mechanism and so on. Specification: 12m 15m 18m Concrete Placing Boom Spreader Machine Specifications 12m Manual Placing boom(frame type) 15…

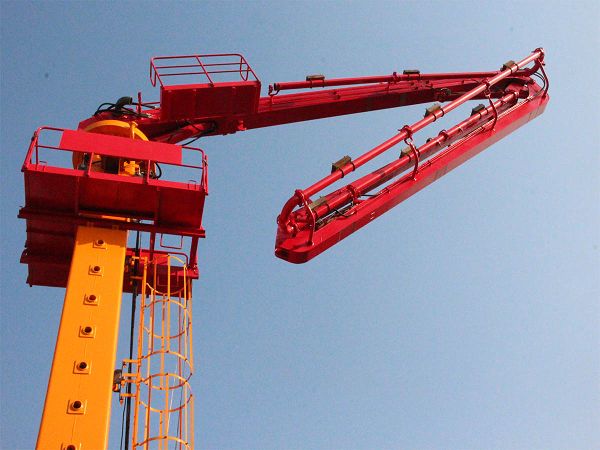

automatic stationary hydraulic concrete placing boom

concrete placing boom divided into two types: stationary and rail-mounted. There are many choices when using, the tower s type are tubular and scaffolding, equipped varied bottoms or rails. Adjustable height according to job requirements. Multiple rational combinations for a variety of requirements and scientific safely protecting structures for higher reliability. Widely used in construction…

Distribution Radius Customized Placing Boom

IT can be placed in suitable places required without being fixed,and it features compact structure,light weight and can be lifted as a whole by a crane. with excellent maneuverability, it can meet the requirements for concrete placement on different jobsites,and it is ideal for concerte pumping placing.   SPECIFICATIONS FOR MOBILE PLACING BOOM MODEL BLGH-13 BLGH-15 BLGH-18 Horizontal reach (m) 13…

Concrete Placing Boom,Concrete Distributor

Concrete Placing Boom Placing radius 6m-32m, manual and hydraulic, used in concrete transport of concrete pump in construction work Product Specification / Models Model HGY13 HGY15 HGY17 HGY18 Horizontal reach (m) 13 13 13 13 Hydraulics output (kW) 4 4 4 4 Hydraulics pressure (MPa) 20 20 20 20 Rotation ( Elevation angle) 360°(-2°~84.4°) 360°(-2°~84.4°)…

12 meter concrete pump placing boom for construction

 mechanical BLG ( booms ) / fabric machine parameters Specification 12 meter electric The arm design Dual-channel steel Fabric RADIUS (m) 12 Cloth height (m) 4 The duct diameter mm 125 Outrigger span m 3.2*3.2 Rotate mode   Electric Total weight kg 1200 Weight kg 600  Pivoting models 315   Materials   Steel angle iron  Slewing range 360°

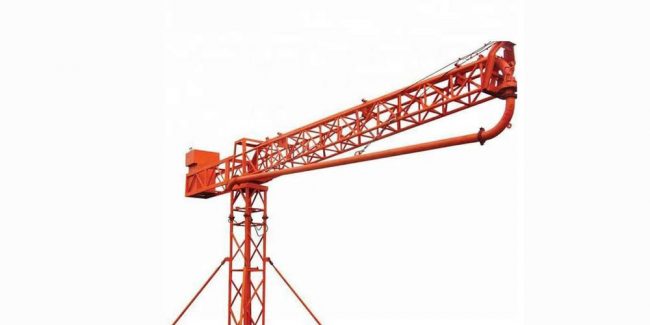

18 meter electric Concrete Pump Placing Boom

18 meter electric Concrete Pump Placing Boom parameters Specification 18 meter electric The arm design Dual-channel steel Fabric RADIUS (m) 18 Cloth height (m) 4 The duct diameter mm 125 Outrigger span m 4*4 Rotate mode   Electric Total weight kg 1700 Weight kg 1000  Pivoting models 380   Materials   Steel angle iron    Slewing range 360°

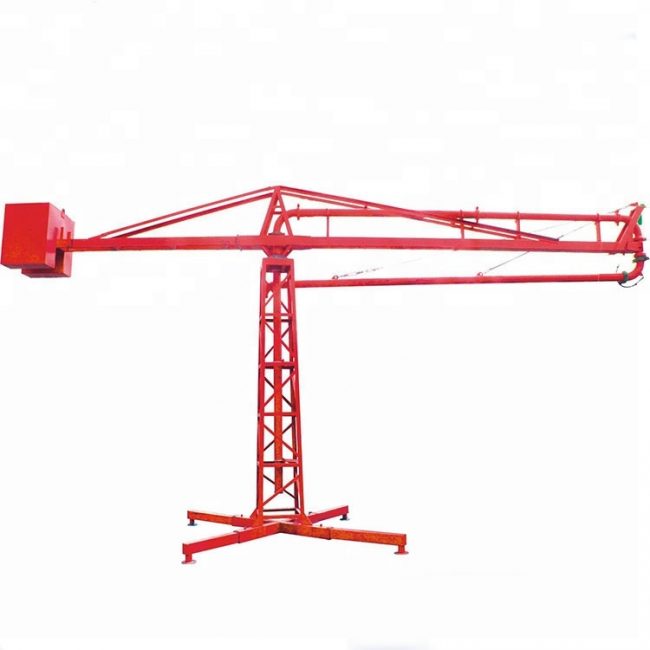

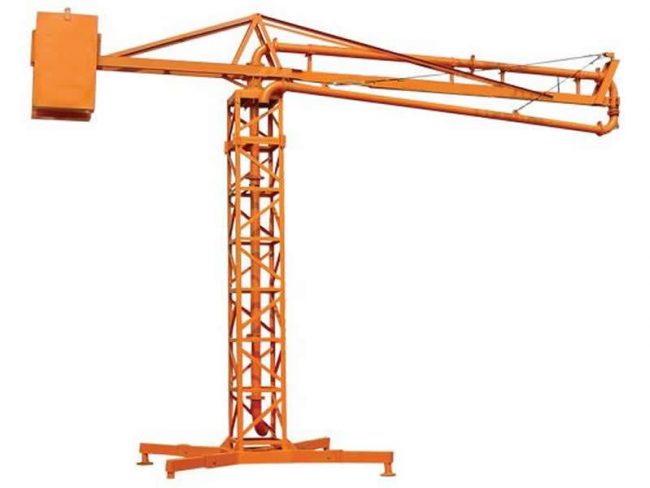

Tower type concrete placing boom

Specification: 12m 15m 18m Concrete Placing Boom Spreader Machine Specifications 12m Manual Placing boom(frame type) 15 meters electric (frame type) Radius of gyration (m) 12 15 The big arm radius 6 8 The height of the placing boom (m) 3-4 3-4 Diameter of conveying pipe (mm) 125 125 Delivery pipe straight pipe wall thickness 4.75mm…

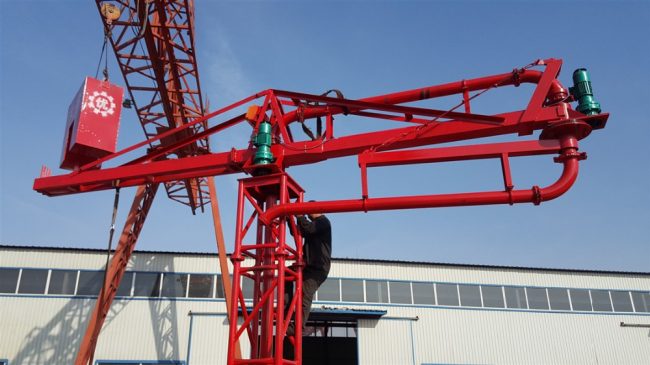

Putzmeister concrete placing boom

Item 12m 15m 18m 18m(bearing) The big arm design dual channel dual channel dual channel dual channel Radius of gyration(m) 12m 15m 18m 18m The height of placing boom 4 4 4 4 Diameter of converying pipe(mm) 125 125 125 125 Leg span (m) 3.2*3.2 4*4 4*4 4*4 Ratation methods manual & electric manual &…

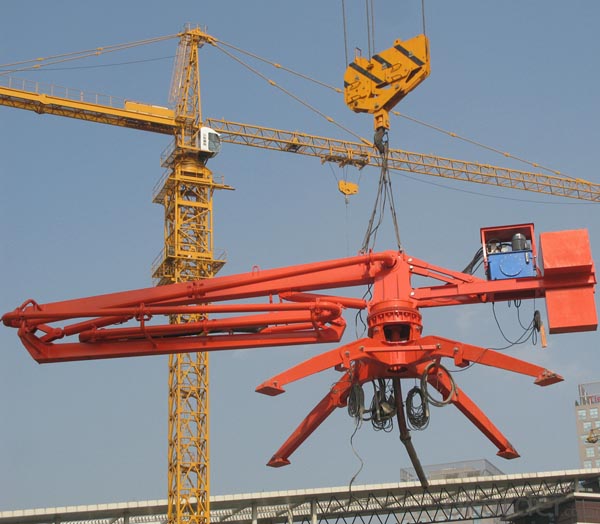

15m Full Hydraulic Spider Concrete Pump Placing Boom

Concrete placing machine, in order to expand the scope of pouring concrete pumping construction mechanization level and developed new products. It is support equipment of concrete pump, expand the scope of the concrete pumping, effective solution to the problem of wall pouring fabric, played an important role to improve construction efficiency, reduce labor intensity. technical…
